Key Features
Temperature Display
- By pressing the switch button on the I/O panel, users can glance at the temperature of the CPU and GPU on the temperature display.
- The temperature display can be switched from CPU temperature to GPU temperature or turned off via the switch button.
ANTEC iUnity
The Antec iUnity provides instant data on PC specs, loads, and usage.
I/O Panel
- Including the mainstream Type-C(10Gbps) port for high-speed transfer.
- Included dust plugs for dust prevention.
- Mic/Audio 2-in-1 port.

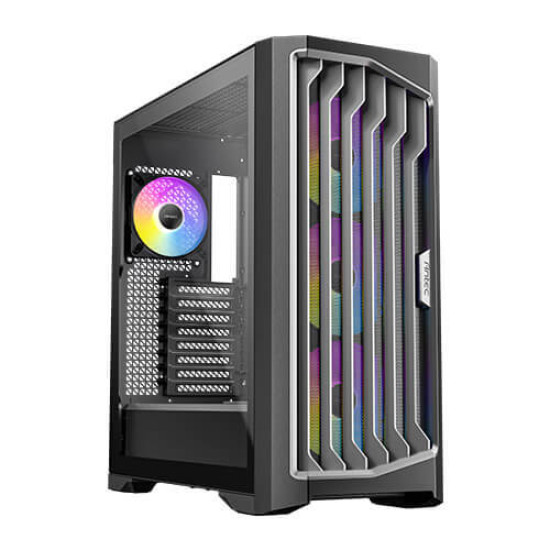

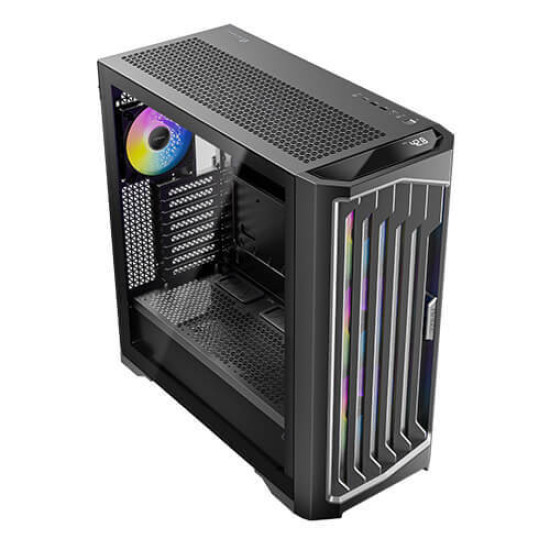

4mm tempered glass & perforated solid steel
- Left panel adopts tempered glass for better PC showcase visual effects.
- Right solid panel is bottom-perforated to enhance heat dissipation and ventilation.

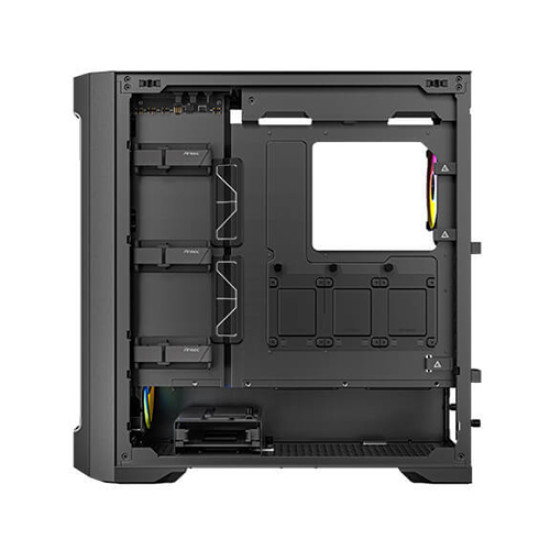

Cable Management on Point
Spacious cable management for efficient wire organization.
MORE TRANQUIL, MORE AIRFLOW
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
Exquisite craftsmanship
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
Vibration-Absorbing & Anti-Noise Pads
Equipped with eight damping feet to prevent chassis and fan resonance, reducing noise.

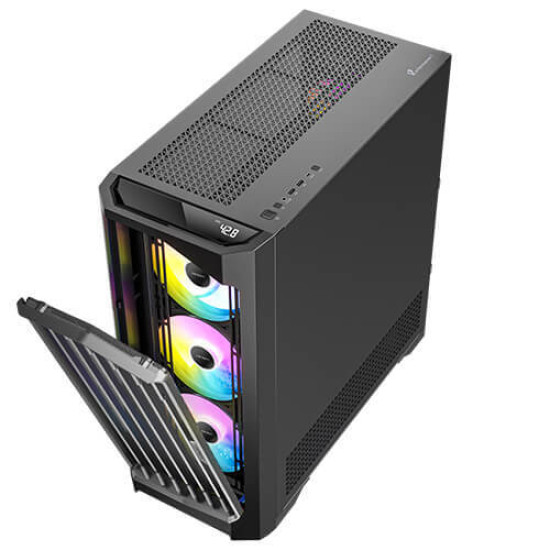

Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
Best Airflow Path for GPU Cooling
- Airflow-enhancing mesh front panel provides massive air.
- Ample mesh at the bottom and bottom-right side, and the availability of fans installed on the meshed PSU shroud together provide the best performance for the GPU cooling.
Supports RTX 40 Series Graphics Cards
Full-tower PC case in 230mm width supports the up-to-date 40 Series GPUs and high-end PC components.
Best Cooling Design
- Support a 420mm radiator at the front. (When installing a 420mm radiator at the front, the radiator at the top must be less than 360mm.)
- Supports 360mm radiators at the front and top simultaneously.
- Up to 10 fans simultaneously.
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.
Specification
main spec
Dimensions : 522 x 230 x 522 mm (DWH)
Form Factor : Full Tower
Materials : Steel + Plastic + Glass
Mainboard Support : E-ATX, ATX, Micro-ATX, ITX
Front Access & Controls : Power, Reset , USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1
Side Panel : 4mm Tempered Glass
Drive Bays
Expansion Slots : 8
3.5" /2.5" : 2/2
2.5" : 3
Fan Support
Front : 3 x 120mm / 3 X 140mm
Top : 3 x 120mm / 3 x 140mm
Power Supply Shroud : 3 x 120mm
Rear : 1 x 120mm
Included Fan(s) : 3 x 140mm Tranquil ARGB PWM fans in front + 1 x 120mm Tranquil ARGB PWM fan in rear
Radiator Support
Front : 120 / 140 / 240 / 280 / 360 / 420mm
Top : 120 / 140 / 240 / 280 / 360mm
Rear : 120mm
Clearance
Max GPU Length : ≤ 400mm
Max CPU Cooler Height : ≤ 175mm
Max PSU Length :
(Include cable) ≤ 245mm(with HDD)
(Include cable) ≤ 440mm(without HDD)
Miscellaneous
Dust Filter : Front / Top / Bottom / Right Side
